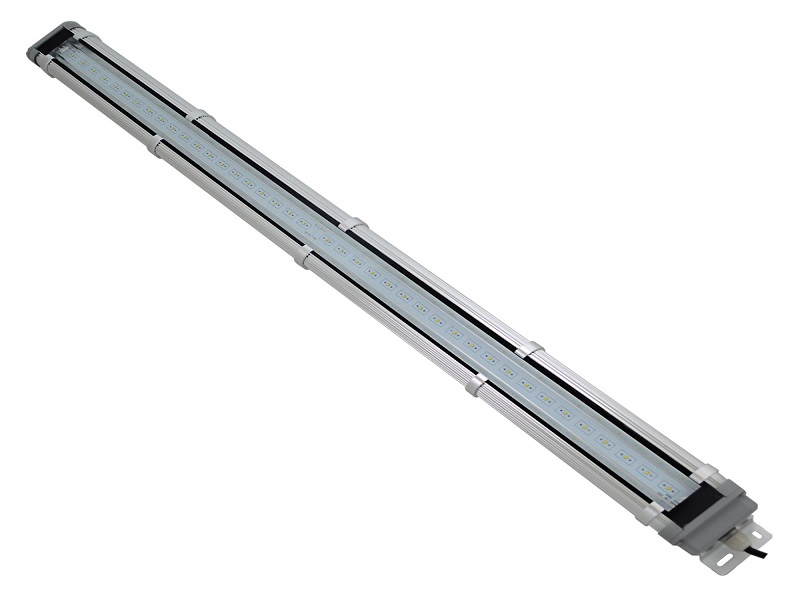

Product:	LB-WM085-W
Item NO.:	LB-WM085
Category:	Machine work lights
Numbering:	LB-WM085-W

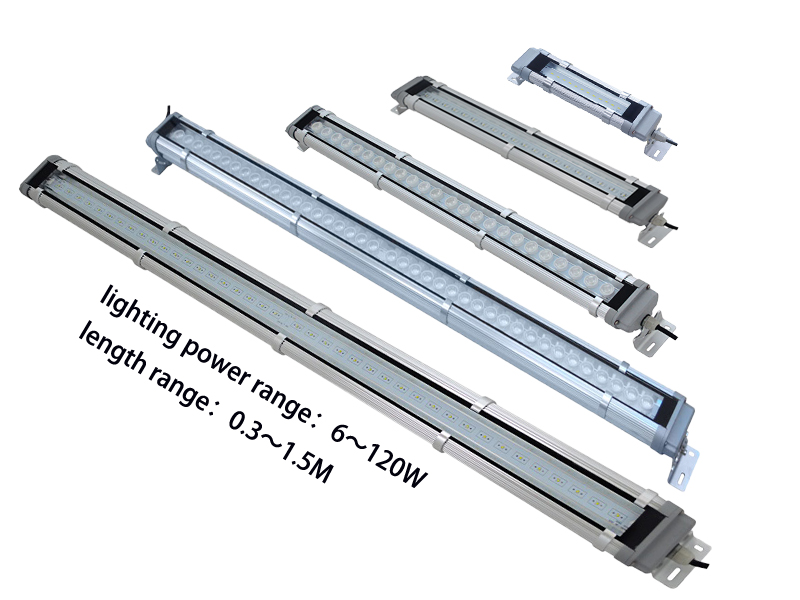

Description:	lighting power range：6～120W length range：0.3～1.5M LED machine work lights LED wall washer LED walkway lights

1. IP68 structure waterproof design, the heatsink adopts the high quality extruded 6063 aluminum, Its length can be cut from 0.3m～1.5M or according to customer's request , the end cover adopts the high quality aluminum alloy(ADC12) die casting, the ultra transparency toughened glass, fine heat dissipation effect and the waterproof structure design, the product is beautiful, solid and durable;
2. light source has a variety of options: SMD5050/3030/2835、CREE/XTE etc., and a variety of angles of lens to be available;
3. it is widely use as machine work lights, wall washer, walkway lights;

4. IP grade:IP68.

Keyword:	LED machine work lights LED wall washer LED walkway lights	Working Temperature(℃):	35～60
Model Number:	LB-WM085-W*-L*	storage temperature	-30℃～+50℃
power range length range	6～120W 0.3～1.5M	main material of Housing	Die-cast of Aluminum and glass lens
power factor	＞0.95	IP Rating:	IP68 Waterproof
Color Temperature(CCT):	3000k-6500k optional	Place of Origin:	China
LED type	SMD3030/SMD2835	product Brand:	lightingbest or customize
LED Chip Brand:	cree/philips/osram/others	Application:	Tunnel,advertising lighting, wall washer, machine work light, walkway light etc.
Luminous Efficiency(lm/w):	max160LM/W(when CCT6000K)	Warranty	3-Year
Extra function optional /Smart Functions:	dimmable,RGB,emergency	CCT availble	3000K/4000K/5000K/5700K/6500K
support customize	yes	Beam angle:	15°/30°/60°/100°
CRI (Ra>):	70～90 optional	Driver Brand:	sosun/lightingbest/others
Input Voltage(V):	AC100～277V/50/60HZ	certificate	CE、Rohs
packing size(mm)	(L030 cm):120100320 (L060 cm):120100620 (L090 cm):120100920 (L120 cm):1201001220 (L150 cm):1201001520	N.W./G.W. (kg)	(L030 cm):1.1/1.4 (L060 cm)):1.8/2.2 (L090 cm):2.6//3.1 (L120 cm):3.4/4.0 (L150 cm):4.4/5.2

For more details, pls click below link to print the product specification:
click here to print the product specification
